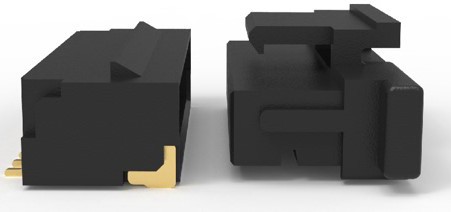

1.0MM ロッキング HPI コネクタ

1.0MM ロッキング HPI コネクタ

  • 信頼性の高い安全な電線対基板接続を提供
  • 嵌合時の明快な嵌合音とクリックフィーリングを実現

TE Connectivityの新しい1.0mmピッチ ロックHPI(High Performance Interconnect）コネクタは、信頼性の高い、安全な電線対基板信号または低電源接続を必要とする薄型アプリケーションのニーズに対応します。ロック機能は、プラグアセンブリとレセプタクル間の安心の嵌合接続を提供し、嵌合時に明快な嵌合音とクリックフィーリングをお届けします。

主な特徴

  • 新しいロック機能により、信頼性の高い安全な電線対基板接続を提供
  • 嵌合時の嵌合時の明快な嵌合音とクリックフィーリング
  • 金めっきは、過酷な環境アプリケーションにて接触部を腐食から保護
  • 現在、市場で流通しているより大きなインターフェースコネクタより、約60%軽量化し、取扱いが簡単。
  • 幅広い製品ポートフォリオには、水平およびライトアングル基板取り付けオプション、3〜15の極数をラインアップし、金および錫めっきを用意

アプリケーション

  • データセンターサーバー
  • コンシューマーエレクトロニクス
  • ドローン
  • プリンタ
  • 生活家電
  • 自動車インフォテーメント
  • 医療機器

電気的特性

  • 定格電流:1A

機械的特性

  • ピッチ: 1.0mm
  • 電線サイズ：AWG 32-28

材料

  • 端子めっき材料：錫、金、金フラッシュめっき

製品型番

Part Number Part Description
2367196-3 1mm Right Angle Header With Latch
2367196-6 1mm Right Angle Header With Latch
2367196-8 1mm Right Angle Header With Latch
1-2367196-0 1mm Right Angle Header With Latch
1-2367196-2 1mm Right Angle Header With Latch
2367197-3 1mm Vertical Header With Latch
2367197-4 1mm Vertical Header With Latch
2367197-6 1mm Vertical Header With Latch
2367197-8 1mm Vertical Header With Latch
1-2367197-0 1mm Vertical Header With Latch
1-2367197-2 1mm Vertical Header With Latch
1-2367197-4 1mm Vertical Header With Latch
2-2367198-3 1mm Housing With Latch
2-2367198-4 1mm Housing With Latch
2-2367198-6 1mm Housing With Latch
2-2367198-8 1mm Housing With Latch
3-2367198-0 1mm Housing With Latch
3-2367198-2 1mm Housing With Latch
3-2367198-4 1mm Housing With Latch
2367199-1 1mm Contact With Latch (Tin)
2367196-4 1mm Right Angle Header With Latch
2367196-5 1mm Right Angle Header With Latch
2367196-7 1mm Right Angle Header With Latch
2367196-9 1mm Right Angle Header With Latch
1-2367196-1 1mm Right Angle Header With Latch
1-2367196-3 1mm Right Angle Header With Latch
1-2367196-4 1mm Right Angle Header With Latch
1-2367196-5 1mm Right Angle Header With Latch
2-2367196-3 1mm Right Angle Header With Latch, Gold Flash
2-2367196-4 1mm Right Angle Header With Latch, Gold Flash
2-2367196-5 1mm Right Angle Header With Latch, Gold Flash
2-2367196-6 1mm Right Angle Header With Latch, Gold Flash
2-2367196-7 1mm Right Angle Header With Latch, Gold Flash
2-2367196-8 1mm Right Angle Header With Latch, Gold Flash
2-2367196-9 1mm Right Angle Header With Latch, Gold Flash
3-2367196-0 1mm Right Angle Header With Latch, Gold Flash
3-2367196-1 1mm Right Angle Header With Latch, Gold Flash
3-2367196-2 1mm Right Angle Header With Latch, Gold Flash
3-2367196-3 1mm Right Angle Header With Latch, Gold Flash
3-2367196-4 1mm Right Angle Header With Latch, Gold Flash
3-2367196-5 1mm Right Angle Header With Latch, Gold Flash
4-2367196-3 1mm Right Angle Header With Latch, 30u” Gold
4-2367196-4 1mm Right Angle Header With Latch, 30u” Gold
4-2367196-5 1mm Right Angle Header With Latch, 30u” Gold
4-2367196-6 1mm Right Angle Header With Latch, 30u” Gold
4-2367196-7 1mm Right Angle Header With Latch, 30u” Gold
4-2367196-8 1mm Right Angle Header With Latch, 30u” Gold
4-2367196-9 1mm Right Angle Header With Latch, 30u” Gold
5-2367196-0 1mm Right Angle Header With Latch, 30u” Gold
5-2367196-1 1mm Right Angle Header With Latch, 30u” Gold
5-2367196-2 1mm Right Angle Header With Latch, 30u” Gold
5-2367196-3 1mm Right Angle Header With Latch, 30u” Gold
5-2367196-4 1mm Right Angle Header With Latch, 30u” Gold
5-2367196-5 1mm Right Angle Header With Latch, 30u” Gold
2367197-5 1mm Vertical Header With Latch
2367197-7 1mm Vertical Header With Latch
2367197-9 1mm Vertical Header With Latch
1-2367197-1 1mm Vertical Header With Latch
1-2367197-3 1mm Vertical Header With Latch
1-2367197-5 1mm Vertical Header With Latch
2-2367197-3 1mm Vertical Header With Latch, Gold Flash
2-2367197-4 1mm Vertical Header With Latch, Gold Flash
2-2367197-5 1mm Vertical Header With Latch, Gold Flash
2-2367197-6 1mm Vertical Header With Latch, Gold Flash
2-2367197-7 1mm Vertical Header With Latch, Gold Flash
2-2367197-8 1mm Vertical Header With Latch, Gold Flash
2-2367197-9 1mm Vertical Header With Latch, Gold Flash
3-2367197-0 1mm Vertical Header With Latch, Gold Flash
3-2367197-1 1mm Vertical Header With Latch, Gold Flash
3-2367197-2 1mm Vertical Header With Latch, Gold Flash
3-2367197-3 1mm Vertical Header With Latch, Gold Flash
3-2367197-4 1mm Vertical Header With Latch, Gold Flash
3-2367197-5 1mm Vertical Header With Latch, Gold Flash
4-2367197-3 1mm Vertical Header With Latch, Gold
4-2367197-4 1mm Vertical Header With Latch, Gold
4-2367197-5 1mm Vertical Header With Latch, Gold
4-2367197-6 1mm Vertical Header With Latch, Gold
4-2367197-7 1mm Vertical Header With Latch, Gold
4-2367197-8 1mm Vertical Header With Latch, Gold
4-2367197-9 1mm Vertical Header With Latch, Gold
5-2367197-0 1mm Vertical Header With Latch, Gold
5-2367197-1 1mm Vertical Header With Latch, Gold
5-2367197-2 1mm Vertical Header With Latch, Gold
5-2367197-3 1mm Vertical Header With Latch, Gold
5-2367197-4 1mm Vertical Header With Latch, Gold
5-2367197-5 1mm Vertical Header With Latch, Gold
2367198-3 1mm Housing With Latch, Black
2367198-4 1mm Housing With Latch, Black
2367198-5 1mm Housing With Latch, Black
2367198-6 1mm Housing With Latch, Black
2367198-7 1mm Housing With Latch, Black
2367198-8 1mm Housing With Latch, Black
2367198-9 1mm Housing With Latch, Black
1-2367198-0 1mm Housing With Latch, Black
1-2367198-1 1mm Housing With Latch, Black
1-2367198-2 1mm Housing With Latch, Black
1-2367198-3 1mm Housing With Latch, Black
1-2367198-4 1mm Housing With Latch, Black
1-2367198-5 1mm Housing With Latch, Black
2-2367198-5 1mm Housing With Latch
2-2367198-7 1mm Housing With Latch
2-2367198-9 1mm Housing With Latch
3-2367198-1 1mm Housing With Latch
3-2367198-3 1mm Housing With Latch
3-2367198-5 1mm Housing With Latch
2367199-2 1mm Contact With Latch (Gold)
