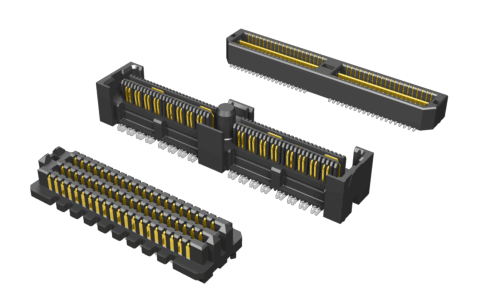

Product About製品概要
- 製品名
- Industry Standards
- 製品カテゴリ
- コネクタ・端子台
- メーカー名
- Samtec, Inc.
•VITA、PCI Express®、3G SDI を初め、各種規格に対応したコネクタを少量よりご購入いただけます。
ECストア
一部商品はECサイトでも購入可能です。
Lineupラインナップ
型番号、製品名、情報から絞り込みができます。
▼ 各「型番号」をクリックすると、その製品についての「お問い合わせページ」へ遷移します。
| 型番号 | 製品名 | 情報 |
|---|
| ASP-103612-01 | VITA 42 – SamArray | 10mm Mated Socket Tin-Lead |
| ASP-103612-02 | VITA 42 – SamArray | 10mm Mated Socket Lead-Free |
| ASP-103612-03 | VITA 42 – SamArray | 10mm Mated Socket Tin-Lead |
| ASP-103612-04 | VITA 42 – SamArray | 10mm Mated Socket Lead-Free LIF Contact |
| ASP-103612-05 | VITA 42 – SamArray | 10mm Mated Socket Tin-Lead LIF Contact |
| ASP-103614-01 | VITA 42 – SamArray | Standard Height Terminal Tin-Lead |
| ASP-103614-04 | VITA 42 – SamArray | Standard Height Terminal Lead-Free |
| ASP-189983-01 | VITA 42 – SamArray | 12mm Mated Socket Tin-Lead LIF Contact |
| ASP-189983-02 | VITA 42 – SamArray | 12mm Mated Socket Lead-Free LIF Contact |
| ASP-153860-01* | VITA 42 – SamArray | 12mm Height Terminal Lead-Free |
| ASP-153860-02* | VITA 42 – SamArray | 12mm Height Terminal Tin-Lead |
| ASP-134602-01 (HPC) | VITA 57.1 FMC – SEARAY™ (HPC/LPC) | 8.5mm Mated Terminal Lead-Free |
| ASP-134606-01 (LPC) | VITA 57.1 FMC – SEARAY™ (HPC/LPC) | 8.5mm Mated Terminal Lead-Free |
| ASP-134488-01 (HPC) | VITA 57.1 FMC – SEARAY™ (HPC/LPC) | 10mm Mated Terminal Lead-Free |
| ASP-134604-01 (LPC) | VITA 57.1 FMC – SEARAY™ (HPC/LPC) | 10mm Mated Terminal Lead-Free |
| ASP-134486-01 (HPC) | VITA 57.1 FMC – SEARAY™ (HPC/LPC) | Standard Height Socket Lead-Free |
| ASP-134603-01 (LPC) | VITA 57.1 FMC – SEARAY™ (HPC/LPC) | Standard Height Socket Lead-Free |
| ASP-188588-01 (HSPC) | VITA 57.4 FMC+ – SEARAY™ (HSPC/HSPCe) | 8.5mm Mated Terminal Lead-Free |
| ASP-196174-01 (HSPCe) | VITA 57.4 FMC+ – SEARAY™ (HSPC/HSPCe) | 8.5mm Mated Terminal Lead-Free |
| ASP-184330-01 (HSPC) | VITA 57.4 FMC+ – SEARAY™ (HSPC/HSPCe) | 10mm Mated Terminal Lead-Free |
| ASP-186900-01 (HSPCe) | VITA 57.4 FMC+ – SEARAY™ (HSPC/HSPCe) | 10mm Mated Terminal Lead-Free |
| ASP-184329-01 (HSPC) | VITA 57.4 FMC+ – SEARAY™ (HSPC/HSPCe) | Standard Height Socket Lead-Free |
| ASP-186899-01 (HSPCe) | VITA 57.4 FMC+ – SEARAY™ (HSPC/HSPCe) | Standard Height Socket Lead-Free |
| ASP-161073-01 | VITA 74 – SEARAY™ Right-Angle (HPC/LPC) | 12.5 mm Mated (LPC 200 pin) Male Lead Free |
| ASP-161074-01 | VITA 74 – SEARAY™ Right-Angle (HPC/LPC) | 12.5 mm Mated (LPC 200 pin) Female Lead Free |
| ASP-161073-02 | VITA 74 – SEARAY™ Right-Angle (HPC/LPC) | 19 mm Mated (HPC 400 pin) Male Lead Free |
| ASP-161074-02 | VITA 74 – SEARAY™ Right-Angle (HPC/LPC) | 19 mm Mated (HPC 400 pin) Female Lead Free |
| PCIE | PCI Express® Standard Board Level Receptacle | - |
| PCIEC | PCI Express® Extender Cable for debug and characterization | - |
| PCIEO | PCI Express® Optical Extender Cable, capable to Gen 3 | - |
| PCOA | PCIe®-Over-Fiber Adaptor Card with FireFly™ Optical Cable | - |
| PCRF | PCI Express® Cable with SMA’s for debug | - |
| PCUO | PCIe®-Over-Fiber FireFly™ Optical Cable Assembly | - |
| ECDP | Edge Rate® Edge Card Twinax Cable Assembly | - |
| ECUE | FireFly™ Copper Micro Flyover Cable Assembly | - |
| EPLSP | Eye Speed® and Eye Speed® HD I/O High-Speed Cable Assemblies | - |
| EDLSP | Eye Speed® and Eye Speed® HD I/O High-Speed Cable Assemblies | - |
| EQCD | Q Strip® 0.80 mm Pitch Micro Coax and Twinax High-Speed Cable Assemblies | - |
| EQDP | Q Strip® 0.80 mm Pitch Micro Coax and Twinax High-Speed Cable Assemblies | - |
| EQRD | Q Rate® Micro Coax High-Speed Cable Assembly | - |
| ERCD | Edge Rate® Micro Coax and Twinax High-Speed Cable Assemblies | - |
| ERDP | Edge Rate® Micro Coax and Twinax High-Speed Cable Assemblies | - |
| DPAM | High-Speed Differential Pair Array | - |
| DPAF | High-Speed Differential Pair Array | - |
| FCF8 | High-Speed Cost-Effective Micro Coax Cable Assembly | - |
| QSE-DP | Q Strip® 0.80 mm Pitch High-Speed Connector Strips | - |
| QTE-DP | Q Strip® 0.80 mm Pitch High-Speed Connector Strips | - |
| HQCD | Q Strip® 0.50 mm Pitch Micro Coax and Twinax High-Speed Cable Assemblies | - |
| HQDP | Q Strip® 0.50 mm Pitch Micro Coax and Twinax High-Speed Cable Assemblies | - |
| QMS-DP | Q2™ High-Speed Connector Strips | - |
| QFS-DP | Q2™ High-Speed Connector Strips | - |
| QSH-DP | Q Strip® 0.50 mm Pitch High-Speed Connector Strips | - |
| QTH-DP | Q Strip® 0.50 mm Pitch High-Speed Connector Strips | - |
| SEAC | SEARAY™ High-Speed Open-Pin-Field Array Cable Assembly | - |
| 6QCD | Q2™ Micro Coax Cable Assembly | - |
| SFPC | SFP+ Cage | コンタクトピッチ：Industry Standardsｍｍ_嵌合相手：SFPC |
| SFPE | SFP+ Copper I/O Cable Assembly | コンタクトピッチ：Industry Standardsｍｍ_嵌合相手：SFPE |
| SFPK | SFP+ Cage and Connector Kit | コンタクトピッチ：Industry Standardsｍｍ_嵌合相手：SFPK |
| MECT | 0.80 mm SFP+ Edge Card Connector | コンタクトピッチ：Industry Standardsｍｍ_嵌合相手：MECT |
| QSFP | Flyover™ QSFP Cage | - |
| QSFPC-PF | QSFP Cage | - |
| QSFPK-PF | QSFP+ Cage And Connector Kit | - |
| QSFP8 | 0.80 mm QSFP+ Edge Card Connector | - |
| USB-A | USB 2.0 Interface, Type A | - |
| USB-AM | USB 2.0 Interface, Male PCB Mount | - |
| USB-B | USB 2.0 Interface, Type B | - |
| MUSB | Mini USB 2.0 Interface | - |
| SPM | IP68 Sealed Mini USB Port | - |
| MUSBS | IP68 Sealed Mini USB Port | - |
| USBR-A | High-Retention USB 2.0 Interface, Type A | - |
| USBR-B | High-Retention USB 2.0 Interface, Type B | - |
