RF Connector
Product About製品概要
- 製品名
- RF Connector
- 製品カテゴリ
- コネクタ・端子台
- メーカー名
- Samtec, Inc.

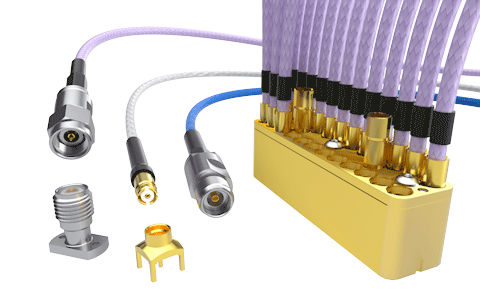

•BNC、HD BNC、SMA、SMB、SMP、SSMB、MCX、MMCX、TNC、N Type、U.FL（MHF)コネクタおよび各種Assy品をご用意しております。
ECストア
一部商品はECサイトでも購入可能です。
Lineupラインナップ
型番号、製品名、情報から絞り込みができます。
▼ 各「型番号」をクリックすると、その製品についての「お問い合わせページ」へ遷移します。
| 型番号 | 製品名 | 情報 |
|---|
| BNC7T-CA | 75 Ohm BNC Jack and Plug, Cable Termination | - |
| BNC7T-BH | 75 Ohm BNC BULkhead Jack | - |
| BNC7T-EM | 75 Ohm BNC Jack, Edge Mount | - |
| BNC7T-TH | 75 Ohm BNC Jack, Through-hole | - |
| RF179 | 75 Ohm RF Cable Assembly, RG 179 Cable | - |
| RFA6T | 75 Ohm RF Cable Assembly, RG 6 Cable | - |
| RFB6T | 75 Ohm RF Cable Assembly, 1694A Cable | - |
| RFB8T | 75 Ohm RF Cable Assembly, 1855A Cable | - |
| HDBNC-CA | 75 Ohm High-Density BNC Plug, Cable Termination | - |
| HDBNC-BH | 75 Ohm High-Density BNC BULkhead Jack, Through-hole | - |
| HDBNC-EM | 75 Ohm High-Density BNC Jack, Edge Mount | - |
| HDBNC-TH | 75 Ohm High-Density BNC Jack, Through-hole | - |
| MCX7-CA | 75 Ohm MCX Plug, Cable Termination | - |
| MCX7-SM | 75 Ohm MCX Jack or Plug, Surface Mount | - |
| MCX7-TH | 75 Ohm MCX Jack, Through-hole | - |
| MMCX7-CA | 75 Ohm MMCX Jack or Plug, Cable Termination | - |
| MMCX7-TH | 75 Ohm MMCX Jack or Plug, Through-Hole Mount | - |
| GRF7H-C | 5.00 mm 75 Ohm Ganged Hybrid Micro-Miniature RF Plug, Cable Assembly | - |
| GRF7-J | 5.00 mm 75 Ohm Ganged Micro-Miniature RF Jack, PCB Mount | - |
| SMB7H-CA | 75 Ohm SMB Plug, Cable Termination | - |
| SMB7H-EM | 75 Ohm SMB Jack, Edge Mount | - |
| SMB7H-TH | 75 Ohm SMB Jack, Through-hole | - |
| ADP7 | 75 Ohm Optimized Adaptor | - |
| DIN7A-CA | 75 Ohm DIN 1.0/2.3 Plug, Cable Termination | - |
| DIN7A-BH | 75 Ohm DIN 1.0/2.3 Jack, BULkhead Through-hole | - |
| DIN7A-TH | 75 Ohm DIN 1.0/2.3 Jack, Through-hole | - |
| BNC7T-J-P-XX-ST-TH1 | 12G-SDI, 75 Ω Solutions_Straight, through-hole | - |
| BNC7T-J-P-XX-RA-BH1 | 12G-SDI, 75 Ω Solutions_BULkhead jack, right-angle | - |
| BNC7T-J-P-XX-ST-EM1 | 12G-SDI, 75 Ω Solutions_BULkhead jack, edge mount (.062″ PCB) | - |
| BNC7T-J-P-XX-ST-EM2 | 12G-SDI, 75 Ω Solutions_BULkhead jack, edge mount (.093″ PCB) | - |
| BNC7T-J-P-XX-RA-BM1D | 12G-SDI, 75 Ω Solutions_Low profile, bULkhead jack, right-angle | - |
| BNC7T-J-P-XX-ST-TH2D | 12G-SDI, 75 Ω Solutions_Straight, tall through-hole | - |
| BNC7T-J-P-XX-RA-BH2D | 12G-SDI, 75 Ω Solutions_BULkhead jack, right-angle | - |
| BNC7T-J-P-XX-ST-EM1D | 12G-SDI, 75 Ω Solutions_BULkhead jack, edge mount (.062″ PCB) | - |
| BNC7T-J-P-XX-ST-EM2D | 12G-SDI, 75 Ω Solutions_BULkhead jack, edge mount (.093″ PCB) | - |
| HDBNC-J-P-XX-ST-TH1 | 12G-SDI, 75 Ω Solutions_Straight, through-hole | - |
| HDBNC-J-P-XX-ST-BH1 | 12G-SDI, 75 Ω Solutions_BULkhead jack, straight, through-hole | - |
| HDBNC-J-P-XX-RA-BH2 | 12G-SDI, 75 Ω Solutions_BULkhead jack, right-angle | - |
| HDBNC-J-P-XX-ST-EM1 | 12G-SDI, 75 Ω Solutions_BULkhead jack, edge mount | - |
| DIN7A-J-P-XX-ST-TH1 | 12G-SDI, 75 Ω Solutions_Straight, through-hole | - |
| DIN7A-J-P-XX-RA-BH1 | 12G-SDI, 75 Ω Solutions_BULkhead jack, right-angle | - |
| BNC5-CA | 50 Ohm BNC Jack or Plug, Cable Termination | - |
| BNC5-BHD | 50 Ohm BNC BULkhead Jack, Die Cast, Through-hole, Right-Angle | - |
| BNC5-THD | 50 Ohm BNC Jack, Die Cast, Through-hole, Straight | - |
| RF047 | 50 Ohm .047″ Diameter RF Flexible Cable Assembly | - |
| RF058 | 50 Ohm RF Cable Assembly, RG 58 Cable | - |
| RF174 | 50 Ohm RF Cable Assembly, RG 174 Cable | - |
| RF178 | 50 Ohm RF Cable Assembly, RG 178 Cable | - |
| RF316 | 50 Ohm RF Cable Assembly, RG 316 Cable | - |
| RF402 | 50 Ohm RF Cable Assembly, 19 AWG Semi-Flexible Cable | - |
| RF405 | 50 Ohm RF Cable Assembly, 24 AWG Semi-Flexible Cable | - |
| RF23S | Solid Dielectric, 23 AWG Microwave Cable Assembly | - |
| RF25S | Solid FEP Dielectric, 25 AWG Microwave Cable Assembly | - |
| RF23C | High-Performance Microwave Cable with Copper Foil Shielding | - |
| MCX-CA | 50 Ohm MCX Jack or Plug, Cable Termination | - |
| MCX-EM | 50 Ohm MCX Jack, Edge Mount | - |
| MCX-MT | 50 Ohm MCX Jack, Mixed Technology | - |
| MCX-SM | 50 Ohm MCX Jack, Surface Mount | - |
| MCX-TH | 50 Ohm MCX Jack or Plug, Through-hole | - |
| GRF1H-C | 5.00 mm 50 Ohm Ganged Hybrid Micro-Miniature RF Plug, Cable Assembly | - |
| IJ5H | 4.00 mm IsoRate® 50 Ohm High-Isolation Hybrid Ganged RF Cable Assembly | - |
| MMCX-CA | 50 Ohm MMCX Plug, Cable Termination | - |
| MMCX-EM | 50 Ohm MMCX Jack or Plug, Edge Mount | - |
| MMCX-MT | 50 Ohm MMCX Jack or Plug, Mixed Technology | - |
| MMCX-SM | 50 Ohm MMCX Jack or Plug, Surface Mount | - |
| MMCX-SW | 50 Ohm MMCX Switchable Jack | - |
| MMCX-TH | 50 Ohm MMCX Jack or Plug, Through-hole | - |
| MMCXV-CA | 50 Ohm MMCX High-Vibration Jack or Plug, Cable Termination | - |
| MMCXV-EM | 50 Ohm MMCX High-Vibration Jack, Edge Mount | - |
| MMCXV-TH | 50 Ohm MMCX High-Vibration Jack or Plug, Through-hole | - |
| SMA-CA | 50 Ohm SMA Jack or Plug, Cable Termination | - |
| SMA-EM | 50 Ohm SMA Jack, Edge Mount | - |
| SMA-MT | 50 Ohm SMA Jack, Mixed Technology Mount | - |
| SMA-PN | 50 Ohm SMA Jack, Panel Mount | - |
| SMA-SM | 50 Ohm SMA Jack, Surface Mount, Right-Angle | - |
| SMA-TH | 50 Ohm SMA Jack, Through-hole | - |
| 292-CA | 50 Ohm SMA 2.92 Jack and Plug, Cable Termination | - |
| 292-CM | 50 Ohm SMA 2.92 Jack, Compression Mount | - |
| SMB5-CA | 50 Ohm SMB Jack or Plug, Cable Termination | - |
| SMP-CA | 50 Ohm SMP Jack, Cable Termination | - |
| SMP-EM | 50 Ohm SMP Plug, Edge Mount | - |
| SMP-TH | 50 Ohm SMP Plug, Through-hole | - |
| TNC-CA | 50 Ohm TNC Jack or Plug, Cable Termination | - |
| TNC-TH | 50 Ohm TNC Jack, Through-hole | - |
| NTPE-CA | 50 Ohm N Type Jack or Plug, Cable Termination | - |
| MH081 | Micro High Frequency RF Cable Assembly, 0.81 mm DIA Coax Cable | - |
| MH113 | Micro High Frequency RF Cable Assembly, 1.13 mm DIA Coax Cable | - |
